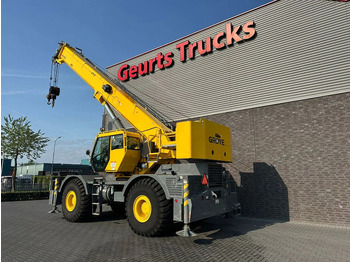

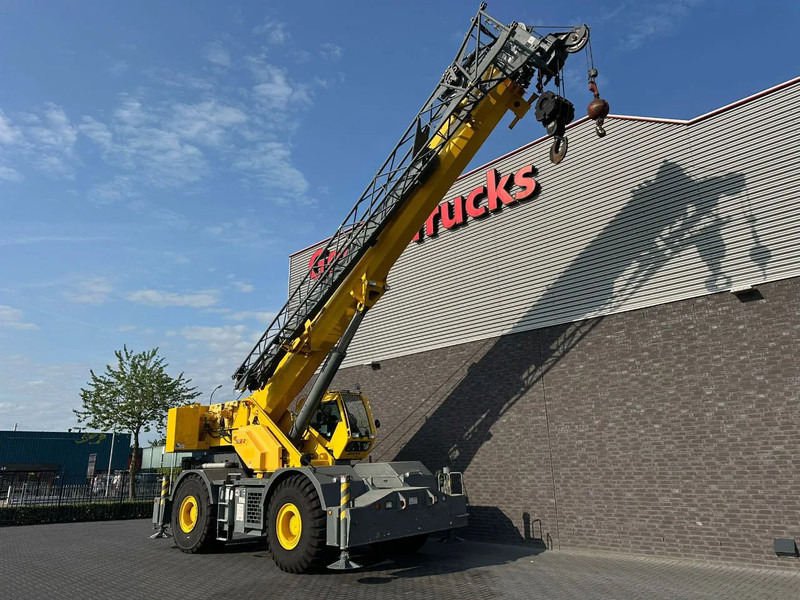

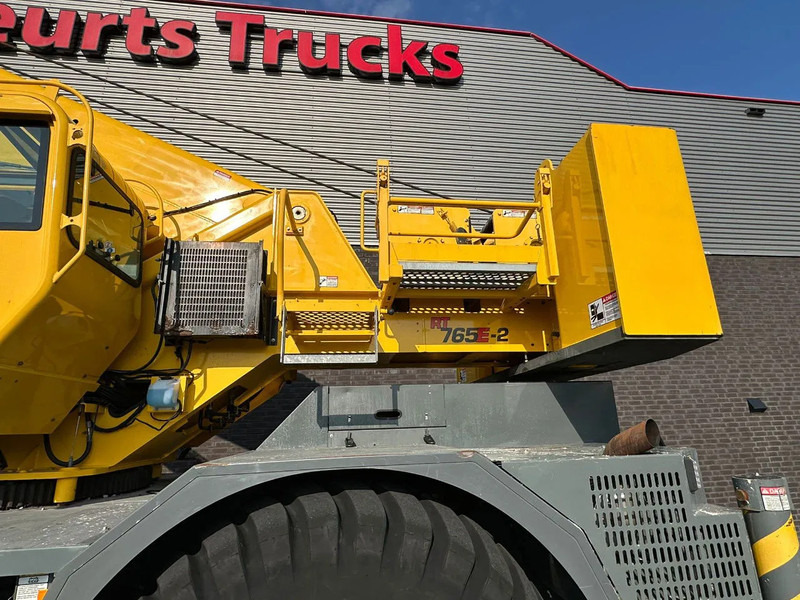

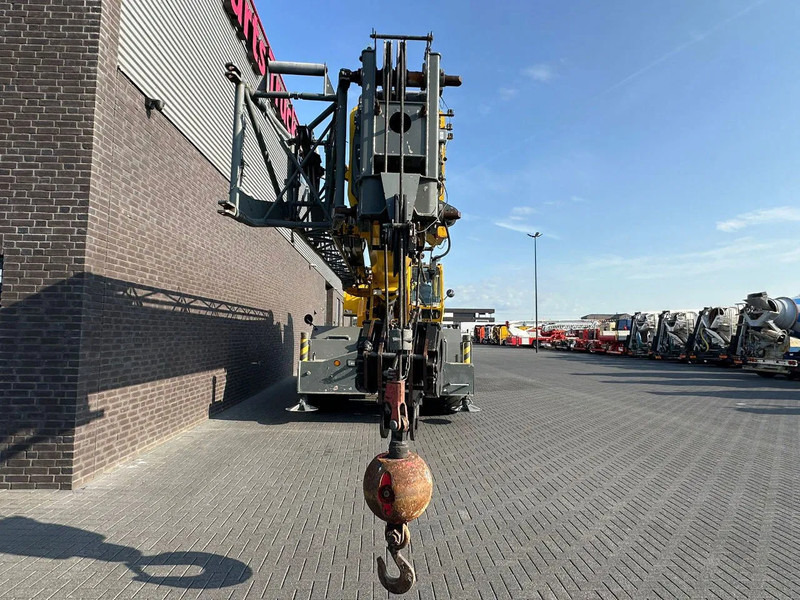

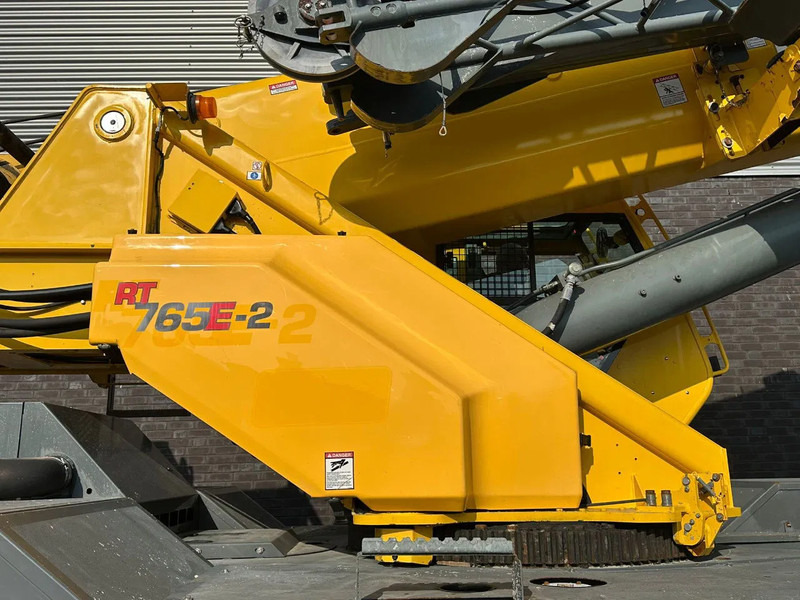

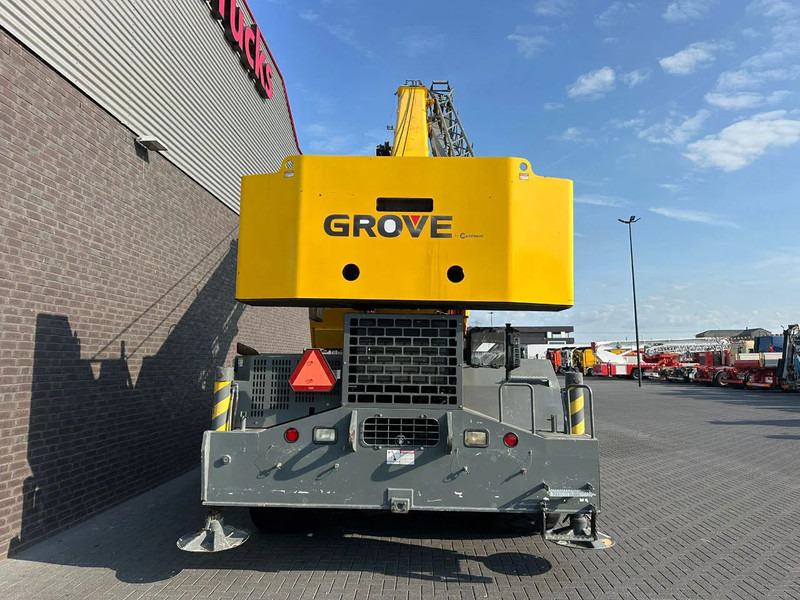

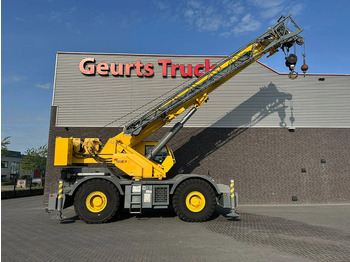

Короткобазный кран Grove RT765E-2 ROUGH TERRAIN CRANE + JIB + 2 X WINCH

GROVE RT 765E-2 ROUGH TERRAIN CRANE + JIB + 2 X WINCH

MAX LIFT CAPACITY 65 TONN

Superstructure

Boom 11 m – 33,5 m, four-section, full-power sequenced synchronized boom.

Maximum tip height: 36,4 m.

• Fixed swingaway extension

10,1 m offsettable lattice swingaway extension. Offsets 0°, 25° and 45°.

Stows alongside base boom section. Maximum tip height: 45,8 m.

• Bifold swingaway extension

10,1 m - 17,1 m bifold lattice swingaway extension. Offsetable at 0°, 25° and 45°.

Stows alongside base boom section. Maximum tip height: 52,8 m.

Boom elevation

One double acting hydraulic cylinder with integral holding valve provides elevation

from -3° to +78°.

Load moment and anti-two block system

Standard “Graphic Display” load moment and anti-two block system with

audio-visual warning and control lever lockout. These systems provide electronic

display of boom angle, length, radius, tip height, relative load moment, maximum

permissible load, load indication and warning of impending two-block condition.

The standard Work Area Definition System allows the operator to pre-select and

define safe working areas. If the crane approaches the pre-set limits, audio-visual

warnings aid the operator in avoiding job-site obstructions.

Cab

Full-vision, all-steel fabricated with acoustical lining and tinted safety glass

throughout. Deluxe seat incorporates armrest-mounted hydraulic single-axis

controllers. Dash panel incorporates gauges for all engine functions. Other standard

features include: hot water heater, cab circulating air fan, sliding side and rear

windows, sliding skylight with electric wiper and sunscreen, electric windshield

wash/wipe, fire extinguisher and seat belt, air conditioning.

Hoist

Planetary reduction with automatic spring applied multi-disc wet brake.

Grooved drum. Electronic hoist drum rotation indicators, and hoist drum cable

followers.

Maximum Single Line Pull: 8 246 kg.

Maximum Permissible Line Pull:

7 620 kg with standard 6X37 class rope.

7 620 kg. with optional 35X7 class rope.

Maximum Single Line Speed: 156 m/min.

Rope Construction: 6X37 EIPS IWRC,

35x7 Flex-X, Rotation Resistant

Rope Diameter: 19mm. Rope Length: Main Hoist: 152 m - Optional: 168 m.

Maximum Rope Stowage: 256 m.

Outriggers

Four hydraulic telescoping single-stage double box beam outriggers with

inverted jacks and integral holding valves. Three position setting, 0%, 50% and fully

extended. All steel fabricated, quick release type outrigger floats, 610 mm diameter.

Maximum outrigger pad load: 36 606 kg. Controls and crane level indicator located

in cab.

Engine

Cummins QSB6.7

179 KW

EPA

Transmission

Spicer powershift with 6 forward and 6 reverse speeds.

Front axle disconnect for 4 x 2 travel.

Drive/Steer

4 x 4. Fully independent power steering:

Front: Full hydraulic steering wheel controlled.

Rear: Full hydraulic switch controlled.

Provides infinite variations of 4 main steering modes: front only, rear only,

More information

Field of application: Construction

Drive: Wheel

Mast: telescopic (4 parts)

Mast length: 58 m

Make of bodywork: GROVE RT765E-2

Technical condition: very good

Visual appearance: very good
