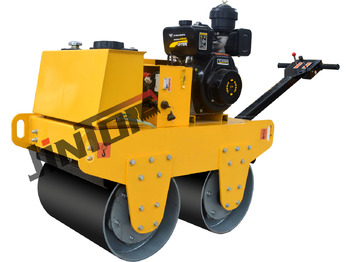

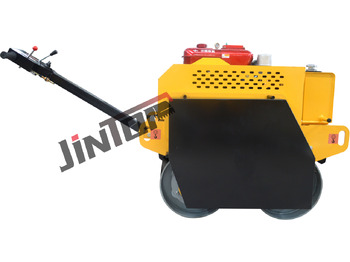

Каток тротуарный Hand held double drum Road roller with CE EPA Approved engine

Model: JTRD-600A

Power(W): 9hp,3600rpm

Weight: 530KG

Water Tank: 20L

Travel Speed: 0-4km/h

Dimension(L*W*H): 2450*780*1800mm

Fuel Tank: 3.5L

CentrifugalForce: 20KN*2

Engine mode: HondaGasoline Engine

Grade Ability: 30%

Starting mode: Hand and electric

JTRD-600B

JTRD-600C

6hp, 3600rpm

8hp, 2300rpm

550KG

590KG

4.5L

ChangfaDiesel Engine

ChangchaiWater-cooled Diesel Engine

Advantages of Hand - Operated Double - Wheel Road Rollers

- Compact and Flexible Body

- The fuselage is designed to be compact, occupying a small area, and can move freely in narrow spaces, such as alleys, sidewalks, areas around flower beds, etc., easily completing the compaction operation without being restricted by the site.

- It has convenient steering and can quickly adjust the operation direction to adapt to the construction needs of various complex terrains.

- Simple and Convenient Operation

- It adopts a hand - operated control mode, and the operation handle is designed in line with ergonomics. Operators can get started without complicated training, which reduces the use threshold.

- The equipment has a relatively simple structure, is convenient for maintenance, has a low maintenance cost, and is suitable for small projects or temporary construction.

- Good Compaction Effect

- The double - wheel design can provide uniform compaction pressure, has a good compaction effect on various materials such as soil, sand and gravel, and asphalt, and can effectively improve the compactness and stability of the foundation.

- The rolling speed and number of times can be adjusted according to different compaction requirements to achieve the ideal compaction effect.

- Wide Application Range

- It is not only suitable for small projects such as rural road construction and courtyard paving, but also can be used for compaction of corner parts of large projects. It is used in conjunction with large road rollers to improve the overall quality of the project.

- For some places with high requirements for noise and vibration, such as construction near residential areas, the noise and vibration of the hand - operated double - wheel road roller are relatively small, which can reduce the impact on the surrounding environment.

- Convenient Transportation and Storage

- It is light in weight and can be transported by small trucks or tricycles, which is convenient for transferring between different construction sites.

- It occupies a small space when stored, which can save the cost of the storage site.

Application Scenarios of Hand - Operated Double - Wheel Road Rollers

- Road Engineering

- Rural Road Construction: When building rural roads in rural areas, due to the limited width of the roads, large road rollers are difficult to use. The hand - operated double - wheel road roller can give full play to its flexible advantages to complete the compaction of the roadbed and pavement.

- Urban Road Maintenance: It is used for the repair project of urban roads, such as the compaction of pothole pavement filling and the foundation compaction before the laying of sidewalk floor tiles, which can quickly restore the use function of the road.

- Community Road Construction: In the construction of internal roads in the community, the roadbed and asphalt pavement can be compacted to ensure the bearing capacity and service life of the road.

- Municipal Engineering

- Backfill Compaction of Pipeline Trench: After the laying of municipal pipelines is completed, the backfill soil of the trench is compacted to prevent road settlement caused by the backfill soil and ensure the safe operation of the pipeline.

- Paving of Squares and Parking Lots: It is used for the compaction of the base and surface layers of sites such as squares and parking lots, so that the site has a flat and solid surface to meet the use requirements.

- Garden and Landscape Engineering

- Laying of Garden Paths: When building paths in garden places such as parks and scenic spots, the roadbed and pavement materials can be compacted to create a beautiful and comfortable walking road.

- Compaction of Flower Bed and Green Space Edges: The soil around the flower bed edges and green spaces is compacted to prevent soil erosion and maintain the neat and beautiful landscape.

- Other Small Projects

- Site Leveling of Construction Sites: Before the start of construction sites, the site is leveled and compacted to create good conditions for subsequent construction.

- Site Compaction in Agricultural Production: Such as the compaction of threshing floors, agricultural product stacking sites, etc., which can improve the use efficiency and stability of the site.

The hand - operated double - wheel road roller, with its unique advantages, plays an important role in various small projects and special scenarios, and is an indispensable small compaction machinery in engineering construction.
