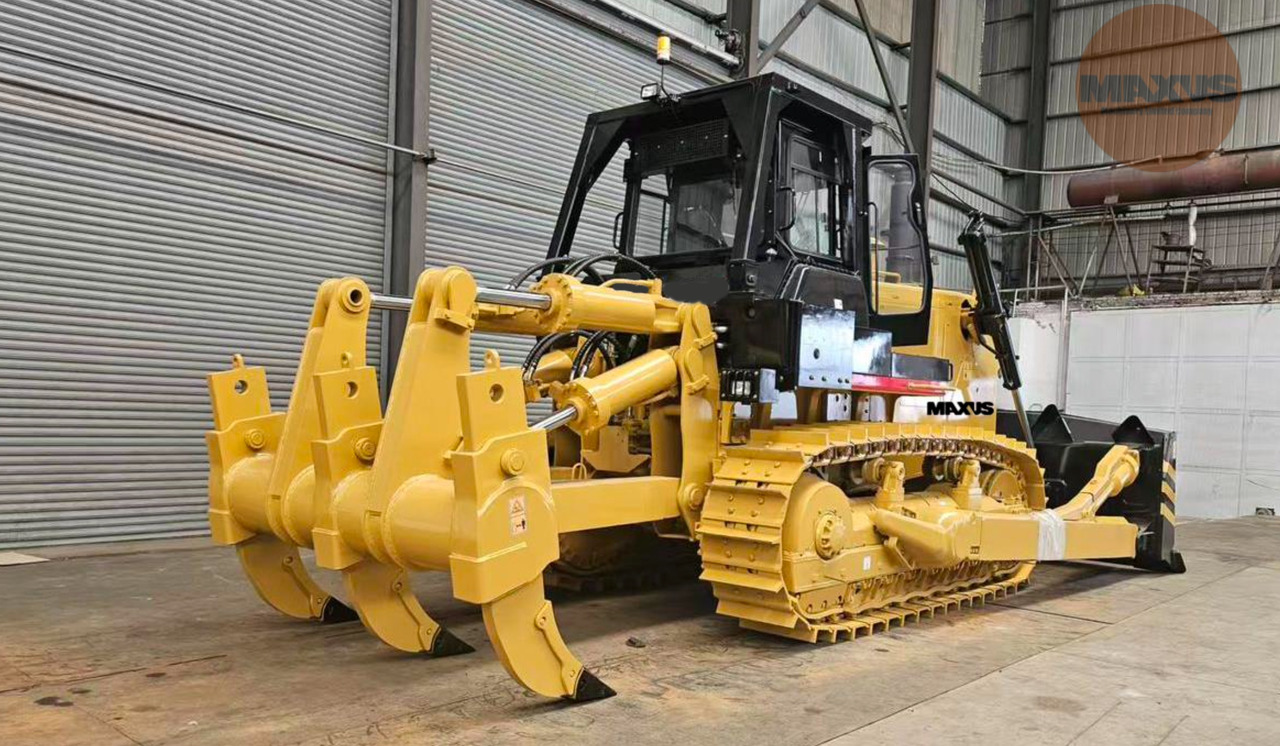

Бульдозер maxus Maxus 350hp Cummins engine

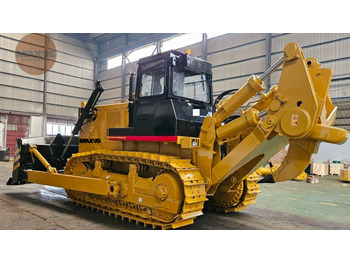

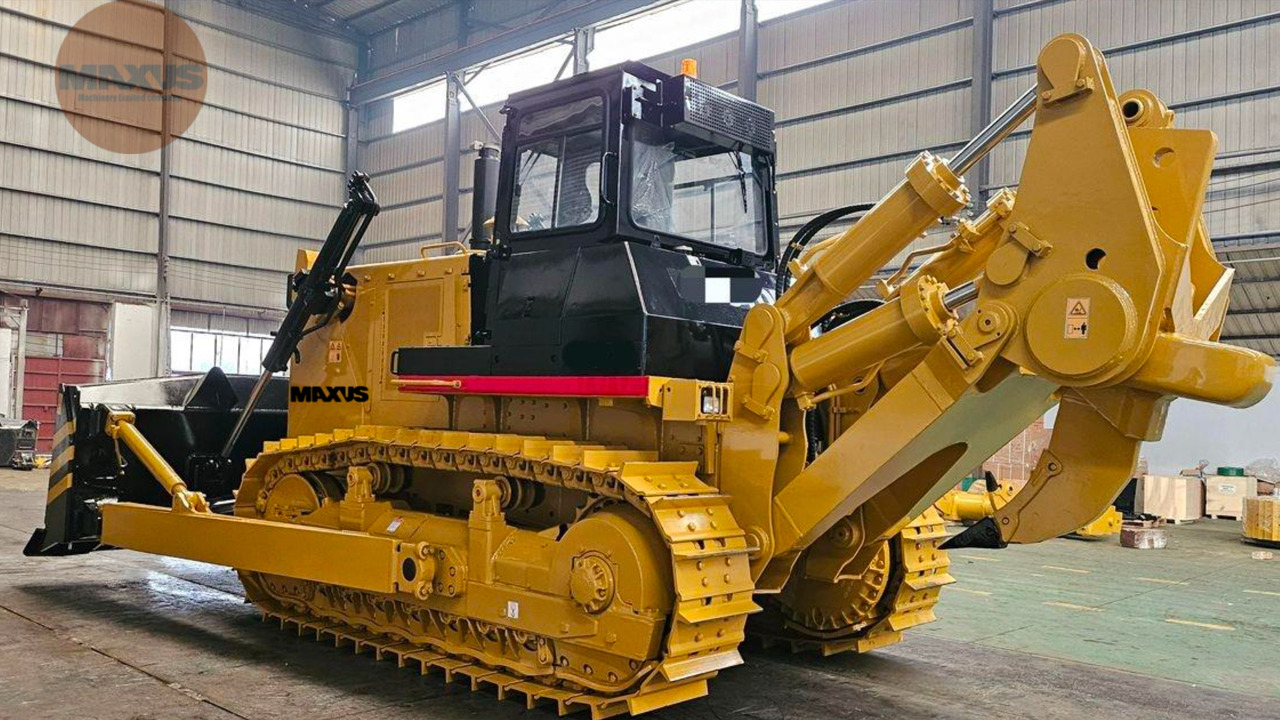

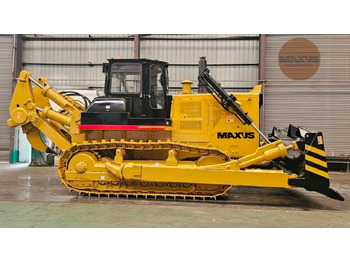

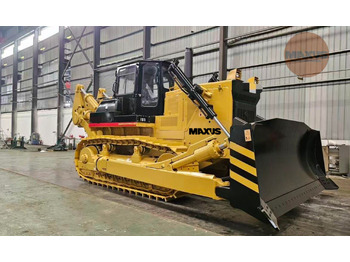

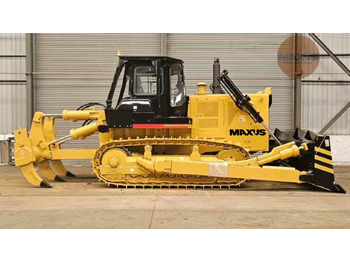

MAXUS Bulldozer with Straight Blade, Single-Shank Ripper, and ROPS Cabin

General Specifications

• Dimensions (L x W x H): 8650 x 4130 x 3688 mm
• Operating Weight: 41,500 kg

Engine

• Model: CUMMINS NTA855-C360S10
• Type: Inline, water-cooled, four-stroke, direct injection, turbocharged
• Cylinders: 6
• Bore x Stroke: 139.7 x 152.4 mm
• Displacement: 14 L
• Rated Power: 257 kW / 2000 rpm (350 HP)
• Max. Torque: 1440 Nm
• Fuel Consumption: 245 g/kWh

Transmission

• Torque Converter: 3-element, 1-stage, single-phase, hydraulic
• Gearbox: Planetary type, Power-shift, forced lubrication
• Central Drive: Spiral bevel gear, single-stage speed reduction, splash lubrication

Final Drive

• Type: 2-stage speed reduction, gear transmission, splash lubrication

Steering System

• Steering Clutch: Wet, multi-plate, spring-loaded, hydraulically separated, hydraulic control
• Steering Brake: Wet, floating, band-type, foot-operated with hydraulic assist

Undercarriage

• Type: Single-track system, dry transmission
• Track Shoe Type: Single grouser
• Track Shoe Width: 560 mm
• Track Pitch: 228.6 mm
• Track Gauge: 2140 mm
• Ground Pressure: 0.105 MPa
• Carrier Rollers: 2 per side
• Track Rollers: 7 per side
• Track Pads: 41 per side

Hydraulic System

• Max. Pressure: 14 MPa
• Pump Type: Gear pump
• Flow Rate: 336 l/min
• Lift Cylinder Bore Diameter: 140 mm (x2)

Blade

• Type: Straight Blade
• Capacity: 10.0 m³
• Blade Width: 4130 mm
• Blade Height: 1710 mm
• Max. Lift Above Ground: 560 mm
• Max. Cutting Depth Below Ground: 1000 mm

Ripper

• Type: Single-Shank Ripper
• Max. Digging Depth: 470 mm
• Max. Lift Height Above Ground: 995 mm
• Weight: 4300 kg

Cabin

• Type: ROPS (Roll-Over Protective Structure)

Other Standard Equipment

• Backup alarm
• Air conditioning
• Fuel pump

Additional Cabin Equipment (Included):

• Air conditioning
• Cabin filters
• Heating
• Radio with MP3 player
• 12V socket
• Single-circuit pneumatic trailer braking system with compressor
• Tow bar and trailer hitch
• External control lever

Travel Speeds

• Forward:
• 1st Gear: 0-3.8 km/h
• 2nd Gear: 0-6.9 km/h
• 3rd Gear: 0-11.8 km/h
• Reverse:
• 1st Gear: 0-4.5 km/h
• 2nd Gear: 0-8.1 km/h
• 3rd Gear: 0-13.9 km/h

If you need a different configuration or machine, no problem – just ask your question, and you will receive an immediate response.
