Бетонный завод ELKON Elkon MOBILE MASTER-150 ELEPHANT150 m³/godz

Condition: Used

-

Condition: new

Capacity: 150 m3/h

The capacity of aggregate silo: 4x30 m3

The capacity of aggregate weigh hopper: 9900 kg

Loading type of aggregate to the mixer: Transfer Conveyor

Mixer capacity: 6750 / 4500 l

Mixer type: Twin Shaft

Cement weighing capacity: 2500 kg

Water weighing capacity: 1100 kg

Additive weighing capacity: 2x50 l

Control system: SIEMENS or ABB (PLC - PC)

Operator cabinet: Included (Built-in)

Cement screw diameter (ø): Ø 323 mm

Compressor: Included

ELKON Mobile Master-150 ELEPHANT Mobile Concrete Batching Plant is not only the highest capacity of ELKON Mobil Master Series but also the highest capacity mobile concrete batching plant in the world within this concept (the main unit is pulled and transported by only 1 truck trailer). ELKON Mobile Master-150 ELEPHANT Mobile Concrete Batching Plant is equipped with 6750/4500 l. twin shaft mixer and reaches 150 m

3

/h vibrated concrete production capacity.

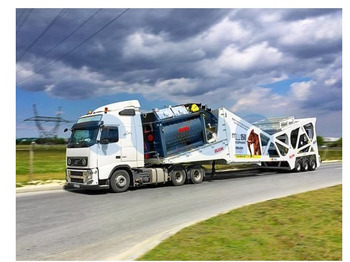

ELKON Mobile Master-150 ELEPHANT Mobile Concrete Batching Plant is designed on a mono-block chassis on which all the components take place can be transported by towing with its axles and tires provides the following advantages to its users:

- Quick and easy installation (2-3 days)

- Cost-effective transportation (the main unit can be transported by one truck trailer)

- Due to the special design, it can be installed on a confined space

- Quick and easy jobsite relocation

- Low foundation cost (installation is on a flat surface)
