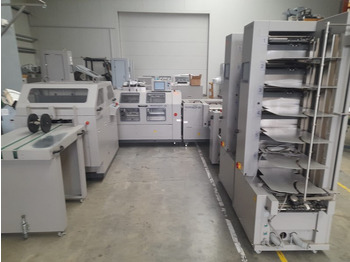

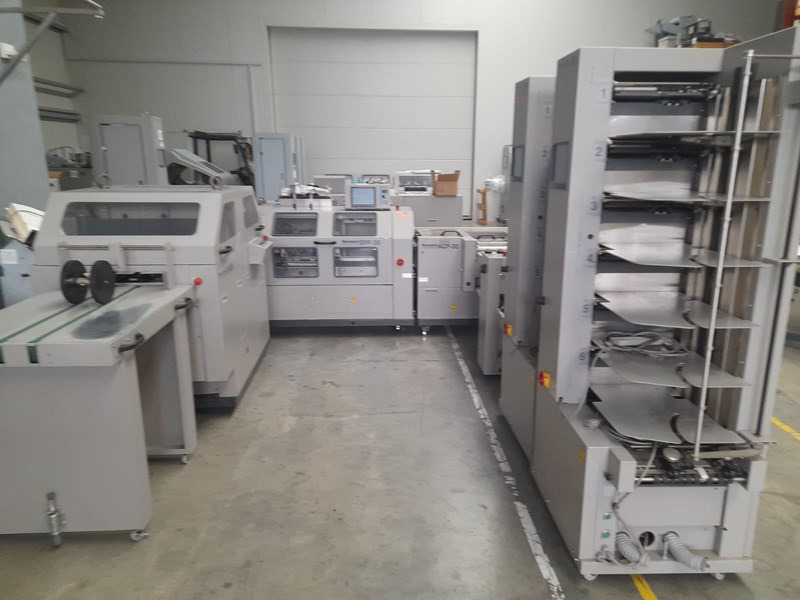

Печатное оборудование Horizon Stitchliner 5500

Number of Colours: 12

-

offer consisting of:

- air-suction collator VAC-60a

- air suction collator VAC-60c

- stacker ST-40

saddle stitcher Stitchliner 5500:

- accumulator and folder ACF-30

- saddle stitcher SPF-30

- three-knife-trimmer HTS-30

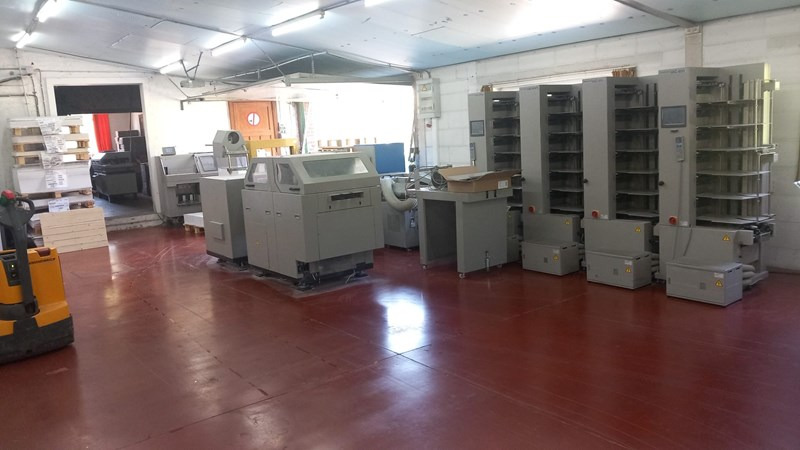

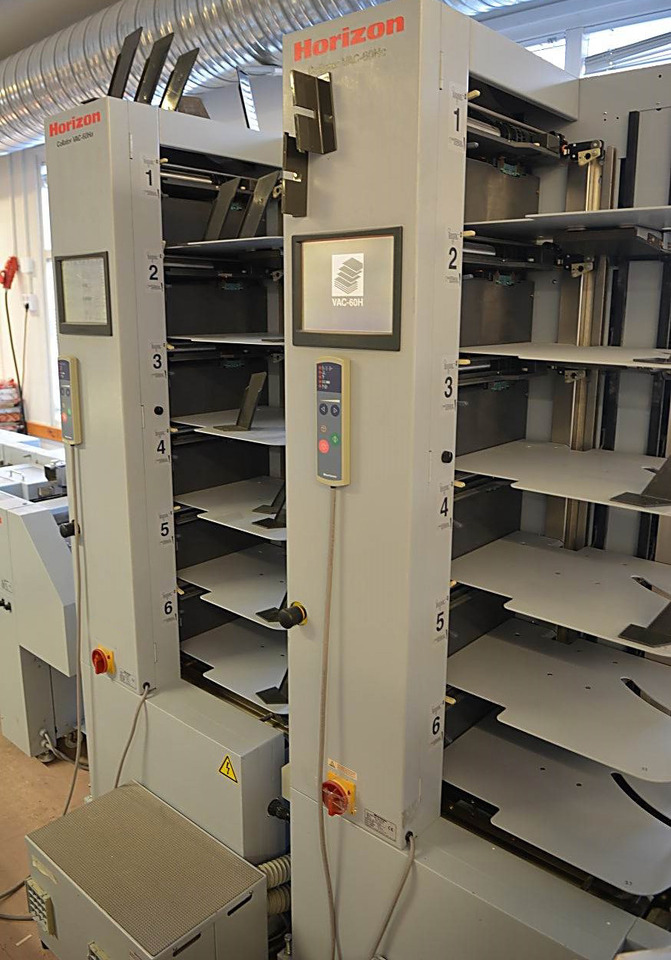

VAC-60a, VAC-60c

air-suction collators

- technology: touch & work

- model: air-suction collator

- bins: 6

- error avoidance: misfeed-,doublefeed- and jamming control

- saveable jobs: 9 memories for repeat orders

- extensibility: up to 6 collators (36 bins)

programs:

- doublecycle (nonstop-work)

- inject (simply and doubly)

- booklet making program

- block program

- selective collating

- sheet size: max. 500x350mm; min. 148x120mm

- paper weight: 40-350g/sqm

- loading height: 130mm/ bin

- production speed: max. 9.500 cycles/h

- power: 230V; 50/60Hz - 1,86kW

- dimensions: 842x652x1.961mm

- weight: each 310kg

- extra function Horizon VAC-60Hc:

collating to both sides

collator usable separately

Horizon ST-40

stacker receiving tray

- benefit: enable non-stop operation in spite of misfeed- and doublefeedcontrol

- dimensions: 1.300x700x950mm

- weight: 126kg

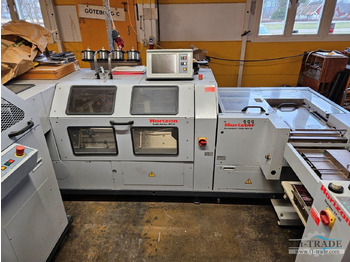

Horizon Stitchliner 5500:

Horizon ACF-30 + Horizon SPF-30 + HTS-30

accumulate&folder + saddle stitcher + three-knife-trimmer

- format adjustment: fully automatic

- DIN-size and standard fold types: preassigned

- saveable jobs: 200 memories for repeat orders

- stitching heads: 2 - expandable up to 4 stitching heads - OPTION

- stapling options: top-, side-, cornerstitiching

- ring eylete stitiching: with ring eyelet stitching heads possible

- inlet format:

max. 500x350mm;

min. 210x148mm

- sheet weight range:

max. 350g/sqm; min. 60g/sqm

- processing strength:

max. 200 pages; min. 8 pages

- stich thickness: max. 5mm /

max. 3mm by ringeyelt

- stitch distance: max. 150mm; min. 60mm

- production speed: max. 5.500 booklets/h

Trimming:

- size untrimmed:

max. 350 x 250mm; min. 140 x 103mm

- size trimmed:

max. 312x 230mm; min. 120 x 95mm

- power: 400V / 50Hz

- work space / installation space:

min. 5.709x3.240mm

- weight Stitchliner: 2.120kg

We can also organize the following for you:

packaging, loading, transport ( by ship or plane) including customs
