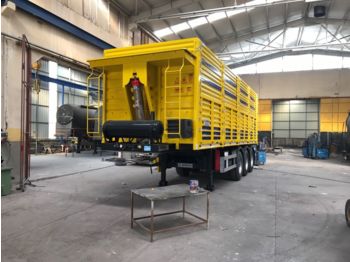

Новый Самосвальный полуприцеп EMIRSAN Multi Purpose Tipper with Container Locks

Multi Purpose Type Tipper Semi Trailer Technical Specifications Structure; Volume: 45 Cbm Tipper body is produced from Domex MC 700 - Hardox 450. Side doors will be 1,2 Domex Additional side doors 1,2 mm Domex Side vertical supports 3 mm Domex Floor 2 mm Hardox Chassis : 120 x 10 mm ST52 Chassis flat steel 4 mm Domex Body includes strengthened rack on the bottom. There are plastic mallets to prevent wearing and noise on the points that contact with rack Dead weight of trailer: 7200 Kg maximum Hydraulic: Tipper movement is provided by level 5 heavy telescopic cylinder brand certificated Hidromas Brand Turkish origin which provides 45o tilt angle Oil reservoir has suction filter, damper pneumatic remote, two speed lowering valve and a limit control security. Oil tank must be added to trailer, hydraulic contact between trailer and conveyor, is provided by 2 sockets Chassis: Strengthened “I” section centre members are welded automatically by submerged welding machine. They are welded between 120/16 mm bottom or top steel plate and 5 mm hub plate. Axles: Turkish Brand 3 x 12 Ton axles with air spring suspensions / Drum brakes There are brake shoes and heavy brake levers suitable for TSE norms. First axle is lifting. Suspensions ; It is supplied with Turkish brand of 6 pcs of air cushion with Z leaf spring Brake System ; Wabco brand EBS braking system will be used with related coding for weigh system and millage. Brake Chambers ; 1 Axles with T 30/30 emergency brake chamber,2 axles with T 30 service brake chambers Electrical system ; 2x7 pin sockets - 24V, lights accord to standard in SAE rear stop lamps, side marker lamps, brake safety warning lamps and signal light fitted at the rear 2 tail & stop combined lamps (red) 2 turn signal combined lamps (orange) 1 license lamp (white) Tires; 6+1 Pieces 385/65 R22,5 Sava Rims; 6+1 Pieces 22.5 Jantsa-Jantas Brand King Pin ; Turkish Brand DIN 74080 standards 2’’ king pin detachable from below made by SAE standards 8 bolt type. With E certificate. Landing Gear ; Turkish Brand Front Jack feet are telescopic,parallel working,double speed jointed with wide shoes static 50 tons, dynamic 25 tons capacity Painting ; Before the painting, all surface is sand blasted After sand blasting small parts are cleaned carefully Epoxy gray is used for first protecting. 3 Times of high quality paints are applied on trailer Thickness of painting checked by electronic devices The color of trailer is selected by our customer according to RAL codes Accossories; Multi-piece plastic fenders that covers back axle shaft tires 1 plate tool box Control Panel (Mob, air clock, access ramp lever) Plastic water tank 2 pcs Spare tire conveyor between trailer legs Mounting and mounting space Tent Cover 300 Lt extra fuel tank aluminum 1 Pc of Wheel chock plastic 1 Pc Fire extinguisher cabinet
