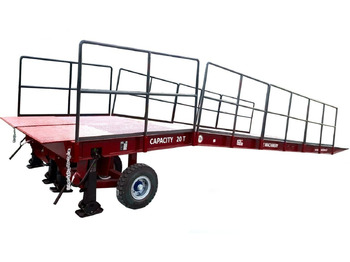

Новый Погрузочная рампа AZ RAMP-EASY XL-20-RL . Mobil Loading Ramp WIDE With Level Off, 20 t Capacity

Mobile loading ramp designed for use on mixed terrain

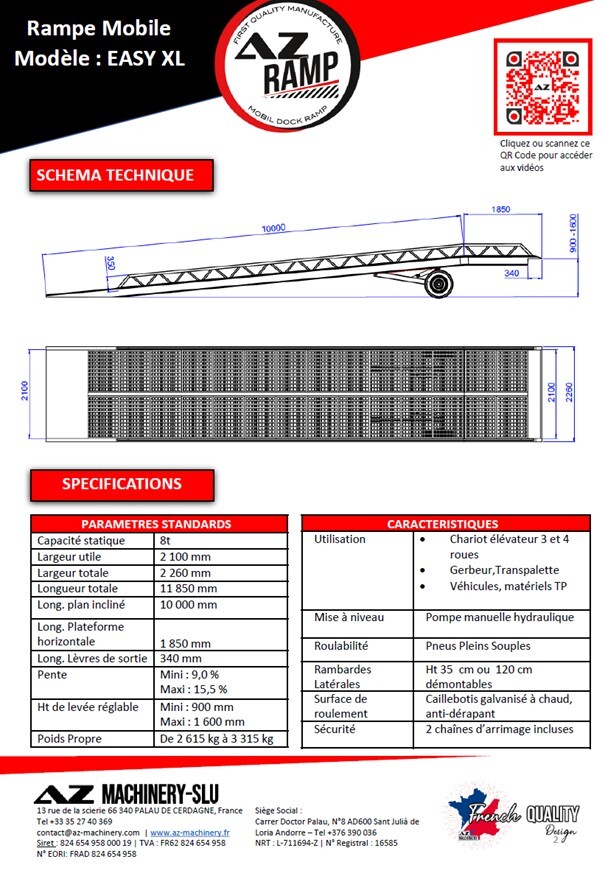

Brand: AZ RAMP - Type: EASY-XL 20-RL, Loading capacity: 20,000 Kg

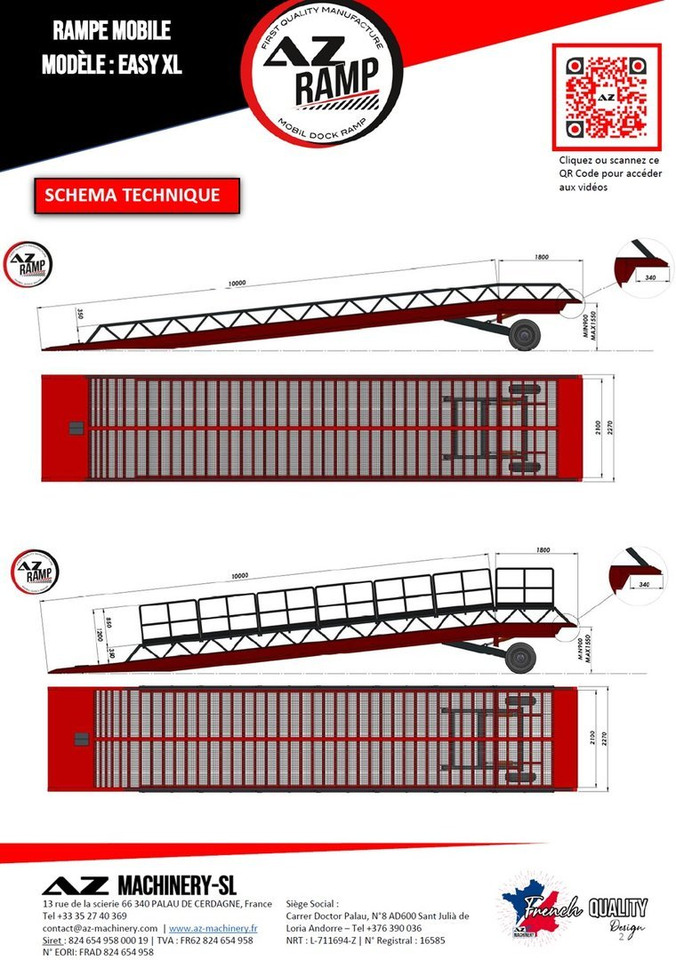

Total length: 11,850 mm

Inclined Plane Length: 10,000 mm / Horizontal Plan Length: 1,850 mm

Overall Width Outside: 2 260 mm / Inside Width (Useful): 2 100 mm

Penetration in the truck: 340 mm

Leveling of the boom by manual hydraulic pump:

Height Mini: 900 mm -Height Max: 1,600 mm

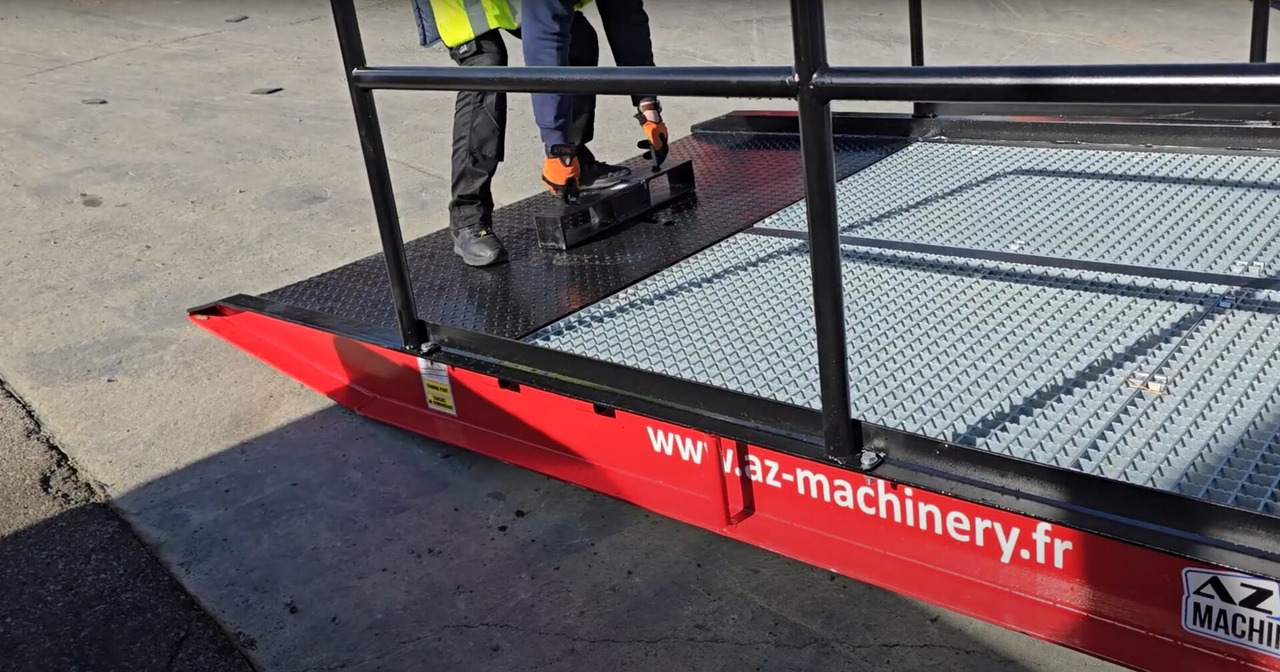

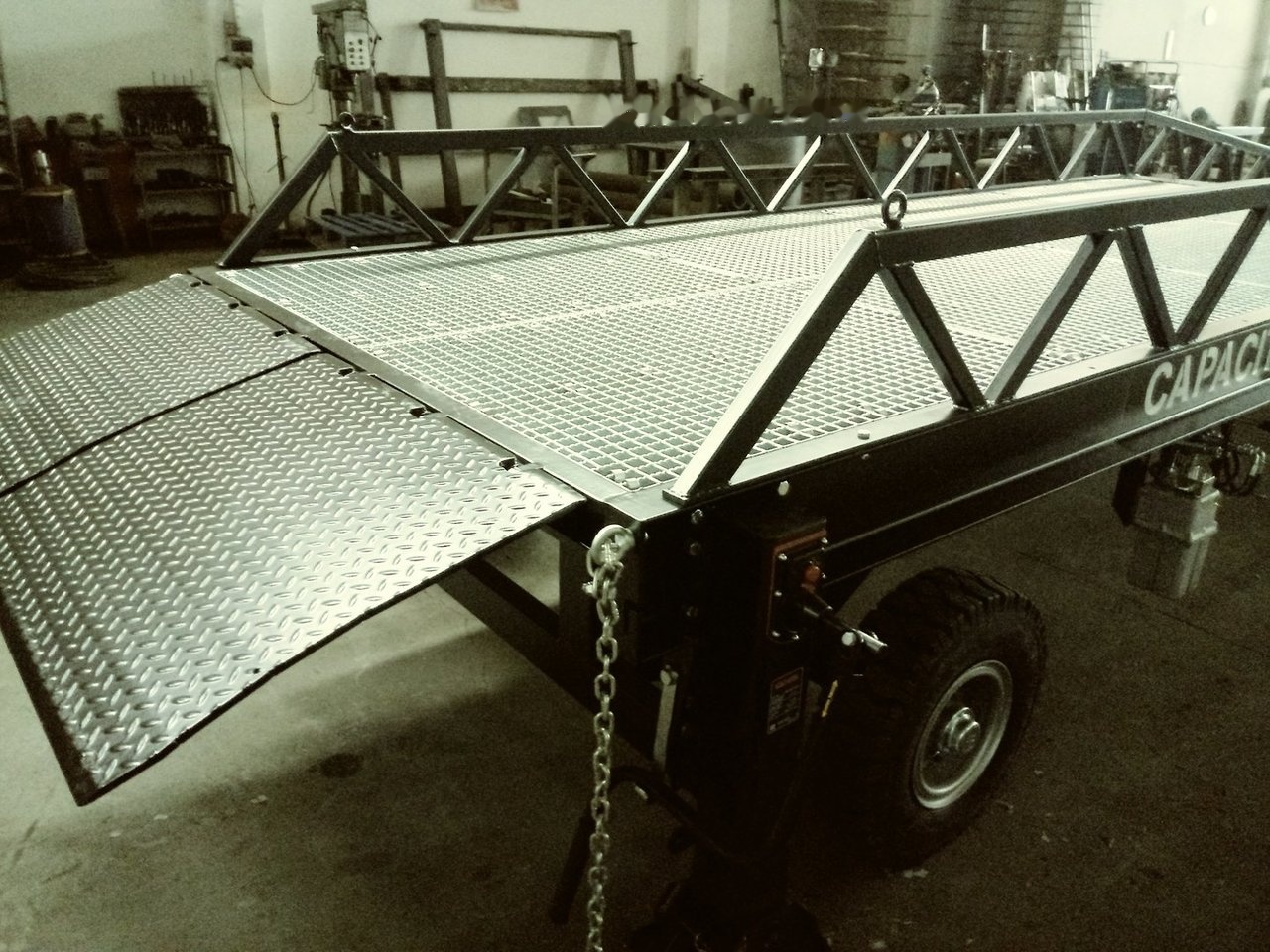

Hot-dip galvanized structure, anti-slip grating running surface 2 Lashing Chains, Quick Hitch for forklift forklift travel, ramp mounted on solid solid tires, 120 mm side safety rails

Slopes: Min: 9.00% - Max: 15.5%

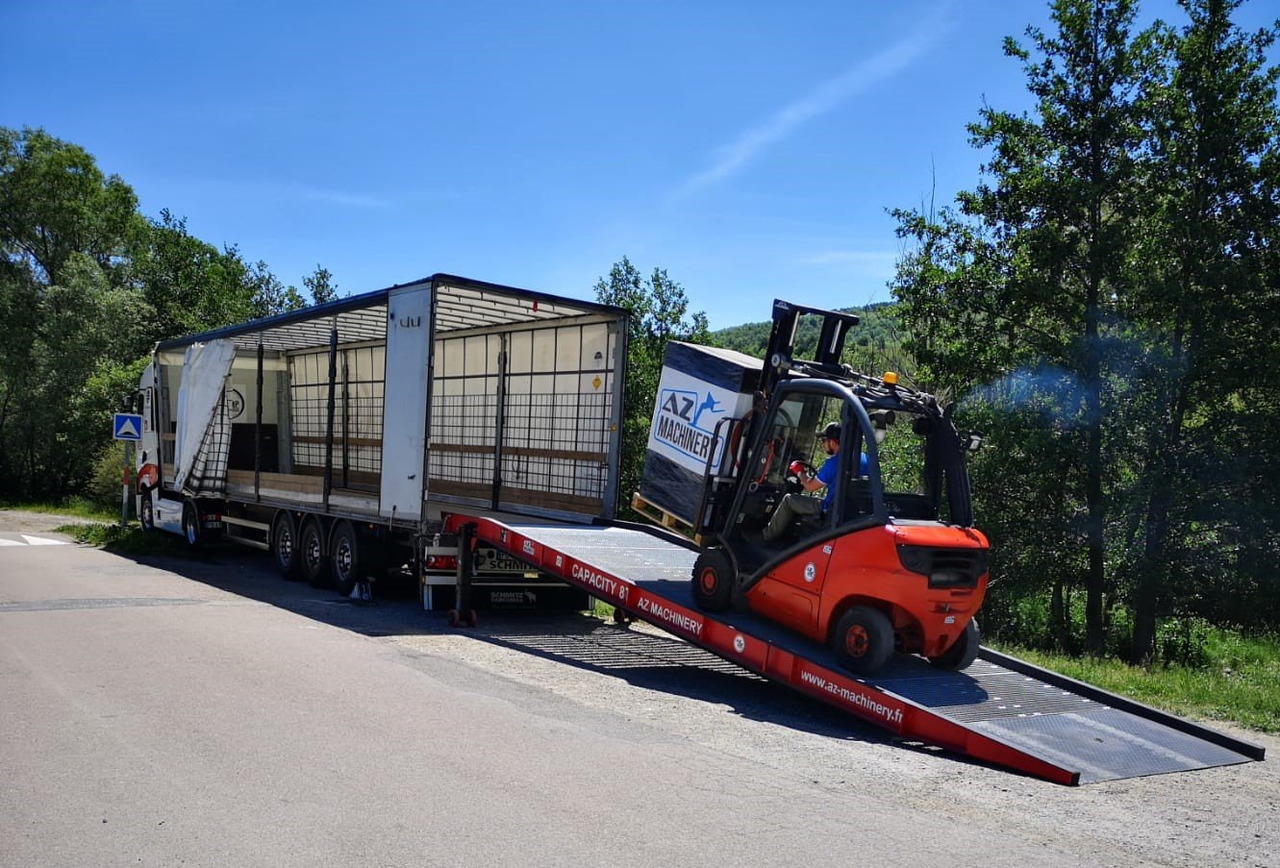

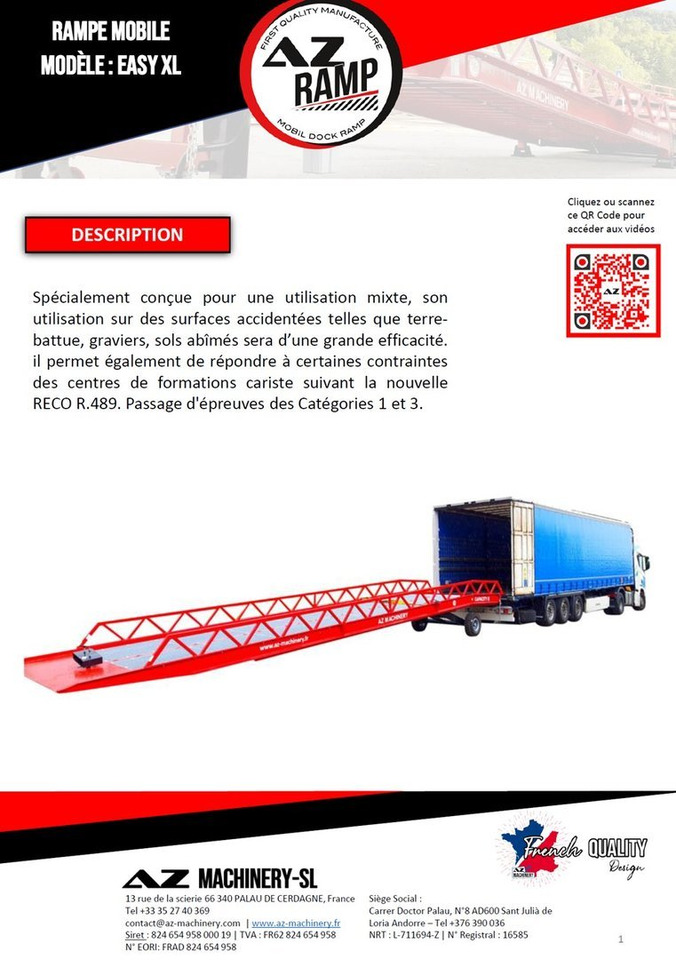

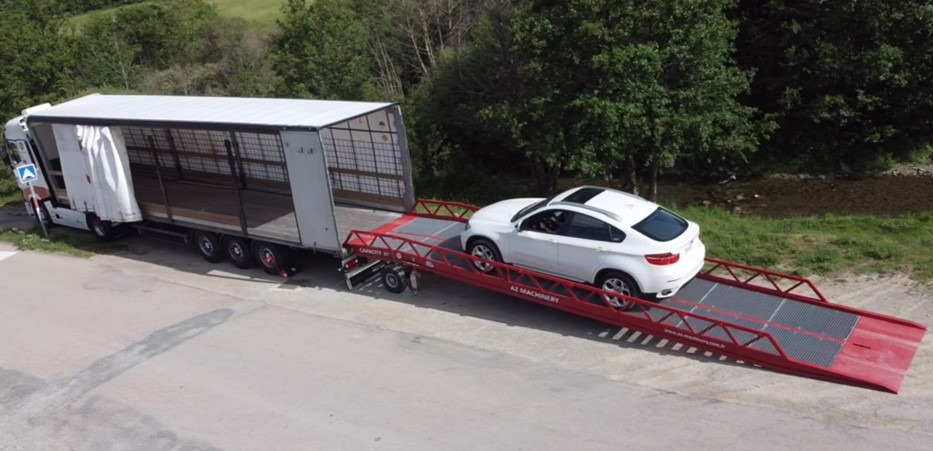

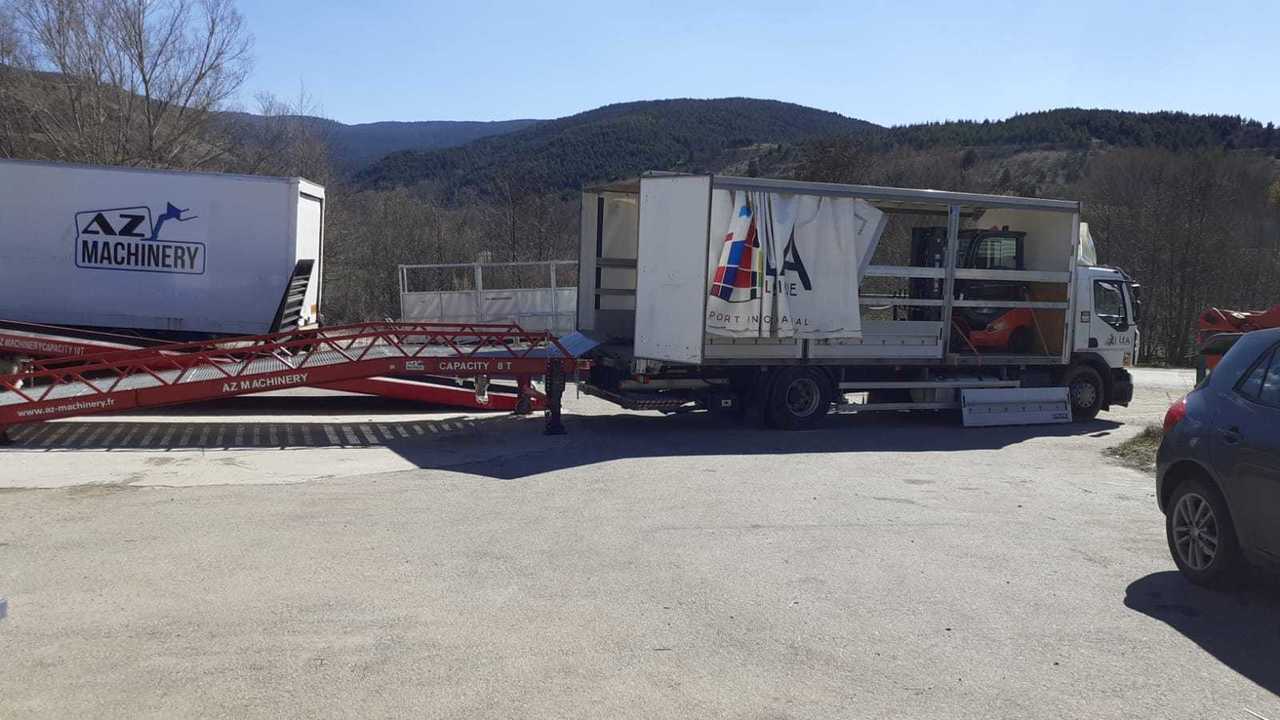

Applications: Specially designed for mixed use, its use on uneven surfaces such as dirt, gravel, damaged soil will be very effective. Loading / Unloading trucks type Plateau or Tautliner, wagons, shipping containers.

The + Products: AZ RAMP - EASY XL -RL range is made of heavy steel, hot dip galvanized. Its full access platform will allow you easy access to all types of material handling equipment, including electric pallet trucks, pallet stackers, electric forklifts with 3 wheels or 4 wheels.
