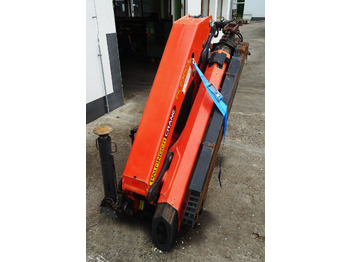

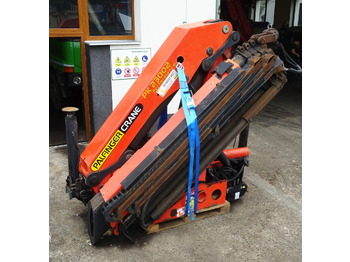

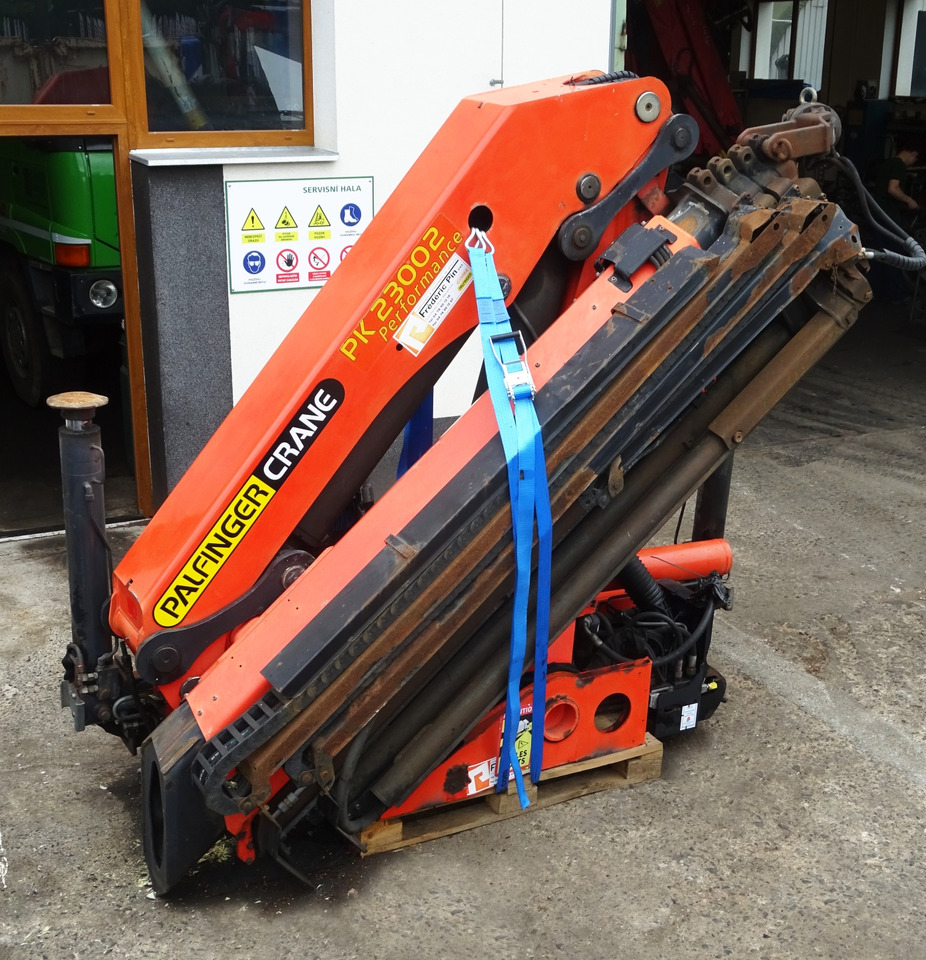

Кран-манипулятор PALFINGER PK 23002 D crane, remote control, extra functions, Ladekran, Kran, gru

CRANE IS RESERVED FOR CLIENT ACTUALLY !! PALFINGER PK 23002 D Performance hydraulic loading crane, lifting category 23 tm, year 2007, very good technical condition (only 4430 hours of operation), tested machine without necessary investment in repairs, video sequences from testing the machine on the vehicle available, etc..

Ideal for vehicles from 26 t total weight for common construction companies, building materials, handling heavier loads (construction cells, containers, smaller construction machines, etc.), for mounting on roll-off containers, etc..

5 x hydraulic extension of the crane boom with a reach of 14.6 m (vertically almost 18 m).

Double lever power linkage transmission to both crane arms for constant crane performance when lifting loads, supplemented by an extra POWER-LINK-PLUS system, enabling the so-called negative bending of straightened crane arms by lifting the boom arm in relation to the main arm by another 15° upwards - better crane maneuverability, e.g. when placing loads over greater distances into confined spaces (hall doors, window openings, etc.).

2 x additional active sections with hydraulic lines at the end of the boom extension for connecting additional loading equipment, included in the price of the original hydraulic rotator with crane hook.

SCANRECO remote radio control of the crane in the version with MINI transmitter with linear actuators.

in combination with the proven electrohydraulic DANFOSS PVG 32 distributor, multi-stage regulation of maximum and minimum working speeds of all crane functions, load signaling.

Emergency single-sided lever control of the crane, double-sided lever control of fully hydraulic crane supports, R3X supports with telescopic hydraulic side extension with extended support width of 6.64 m, both support cylinders manually rotatable (swingable), or (at an additional cost) hydraulically rotatable by 180°.

Protective covers for hydraulic hoses on the crane column, hydraulic control panel and electrical components on the crane base, protective cover for the bundle of hydraulic hoses led to the crane column.

PAL 50 system for monitoring and signaling the machine load and its diagnostics, electronically controlled E-HPLS system for max. crane performance in the range of 90 – 100% load, AOS system, etc..

Load capacity / outreach (horizontal): (7850kg/2.4m) 4430kg/4.6m 3230kg/6.0m 2310kg/7.9m 1710kg/10.1m 1360kg/12.2m 1130kg/14.4m.

Rotation angle 400°, working pressure max. 33 MPa

Central lubrication for crane column mounting, oil cooler.

Crane dimensions when folded: 2500 x 1090 x 2300 mm (crane base 901 mm).

Crane weight 3315 kg.

Remote control transmitter (RC) + battery charger included, rotator with crane hook incl. hitch included, oil cooler, hydraulic tank, pump, documentation.

Possibility of demonstrating the machine on a test chassis, mounting on a vehicle, etc. We sell loading cranes since 1998 year, for other informations call or write to No. +420 602 101 513 (WhatsApp available also).
